WALBRO INLINE FUEL PUMPS ARE IDEAL FUEL PUMP REPLACEMENTS AND UPGRADES FOR:
- Vehicles with faulty inline fuel pumps.
- Vehicles with expensive or hard to replace in-tank fuel pumps.
- Vehicles with stock OEM replacement.
- Universal and custom built fuel systems.

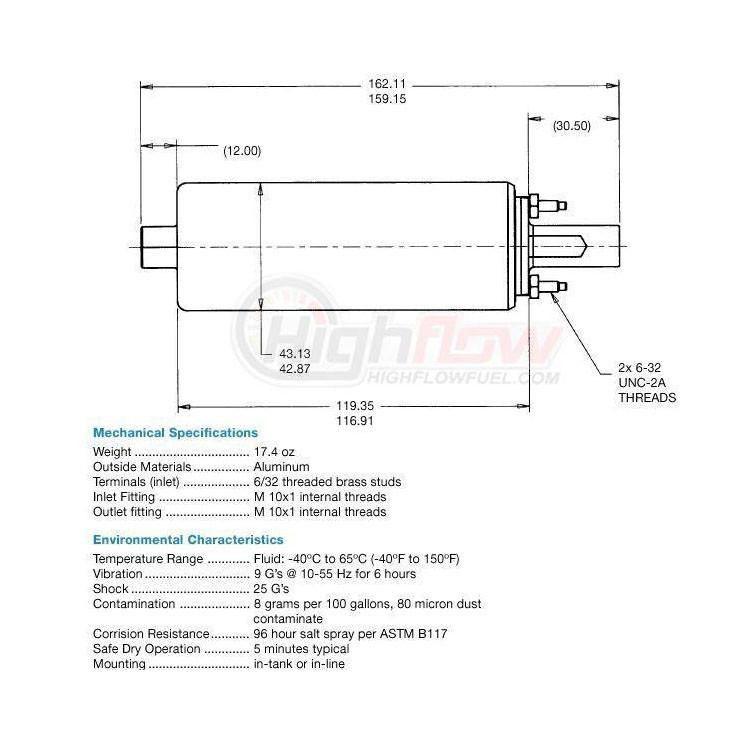

Mechanical Specifications:
- Weight: 17.4oz
- Outside materials: Aluminum
- Terminals (inlet): 6/32 threaded brass studs
- Inlet Fitting: M 10x1 internal threads
- Outlet Fitting: M 10x1 internal threads
Environmental Characteristics:
- Temperature range: Fluid: -40°C to 65°C (-40°F to 150°F)
- Vibration: 9 G @ 10-55 Hz for 6 hours
- Shock: 25 G
- Contamination: 8 grams per 100 gallons, 80 micron dust contaminate
- Corrosion resistance: 96 hour salt spray per ASTM B117
- Safe Dry Operation: 5 minutes typical
Inline fuel pump specs:
- Part Number: Walbro GSL414
- Noise Output: QUIET
- Design: External (frame mounted)
- Flow: OE Spec pressure, volume, amperage draw
- OE-proven second generation.
- Fits most EFI applications including turbo and supercharged.
- All metal shell including inlet and outlet.
- 10mm x 1mm threaded inlet and outlet accept a variety of fittings.
- Lightweight, compact design.
- QS9000 certified.
- Brand Name:
- Walbro / TI Automotive
- Flow Rate:
- 255LPH
- Fuel Type:
- Gasoline
- Vehicle Type:
- Automotive
- Pump Placement:
- Inline
- Aftermarket Type:
- OE Replacement
There is a Limited warranty on all Walbro/TI Automotive products. Any Walbro or TI Automotive products that fail prematurely may qualify for replacement if it is determined that the failure was due to a defect in workmanship or material. This warranty only applies to the original customer and is non-transferable. Improper use, installation, or repair of the product voids this warranty, and Quantum Fuel Systems is not responsible for incidental costs resulting from the failure of the product. Quantum Fuel Systems will provide one (1) warranty replacement of the original Walbro or TI Automotive product within sixty (60) days of the original purchase date. All warranty claims placed beyond this 60-day period will need to be sent directly to Walbro/TI Automotive. Please visit www.highflowfuel.com/contact for assistance. Alternatively, Quantum Fuel Systems will offer to replace a Walbro/TI Automotive pump outside of the 60-day period with a Quantum Fuel Systems manufactured pump that is interchangeable with the original pump purchased. Please note that Quantum Fuel Systems does not manufacture an interchangeable pump for all Walbro/TI Automotive pumps and this option is subject to availability of the product.
